Max Static Load3600 Kg.
Power Range (AC2)7.5 kW. 4/16 Pole 50Hz
7.5 kW. 4/16 Pole 60Hz
Brake Voltage48, 60, 110, 220 DC.
Sheave Range510, 530, 560 mm.
Oil Capacity3.5 Ltr. (Approx)
Weight320 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Travel |
|---|---|---|---|---|---|---|---|---|---|
| VI 10 UT SUPER AC2 | 680 | 1.00 | 1/43, 1/45 | 530 | 10/13 x 4/5 | 1:1 | 7.5 | 10 | 40 |
| VI 12.5 UT SUPER AC2 | 884 | 1.00 | 1/43, 1/45 | 530/560 | 10/13 x 5/6 | 1:1 | 9.0 | 12.5 | 42 |

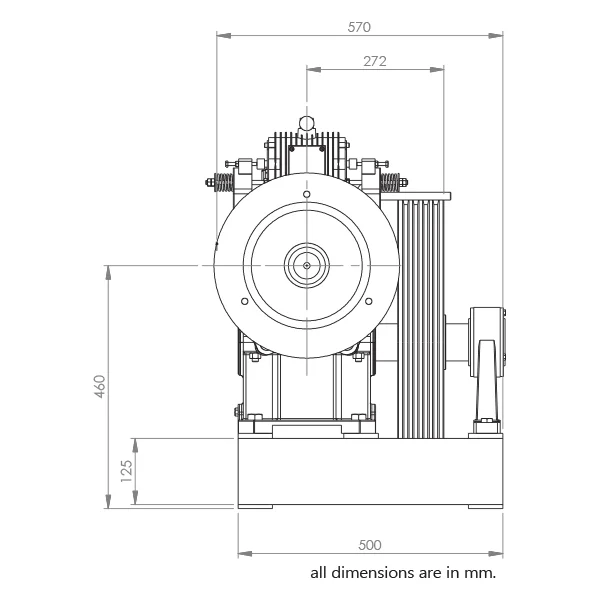

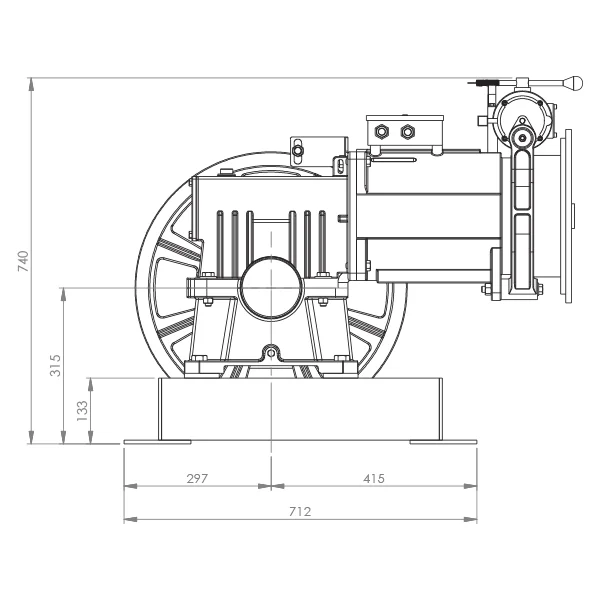

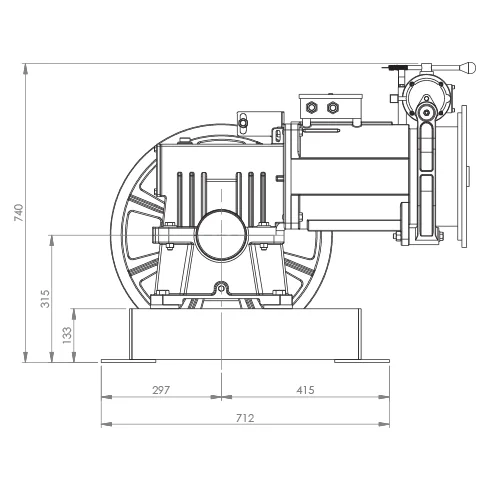

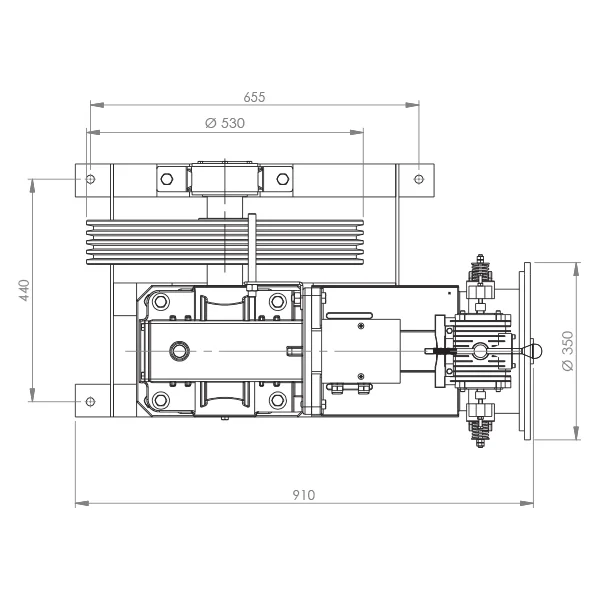

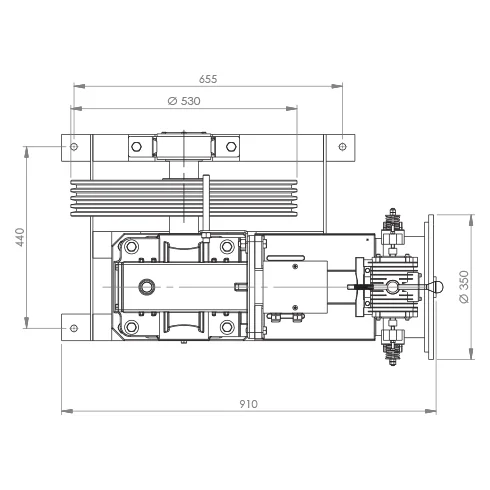

Technical Drawing
