Max Static Load7000 Kg.
Power Range15 kW.
Brake Voltage48, 60, 110, 220 DC.
Sheave Range610 mm.
Oil Capacity7 Ltr. (Approx)
Weight480 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Travel |
|---|---|---|---|---|---|---|---|---|---|
| VI 20 UT | 1360 | 1.00 | 1/50 | 610 | 13 x 3/5 | 1:1 | 15 | 20 | 30 |
| VI 20 UT | 3000 | 1.00 | 1/50 | 610 | 13 x 3/5 | 2:1 | 15 | 20 | 30 |

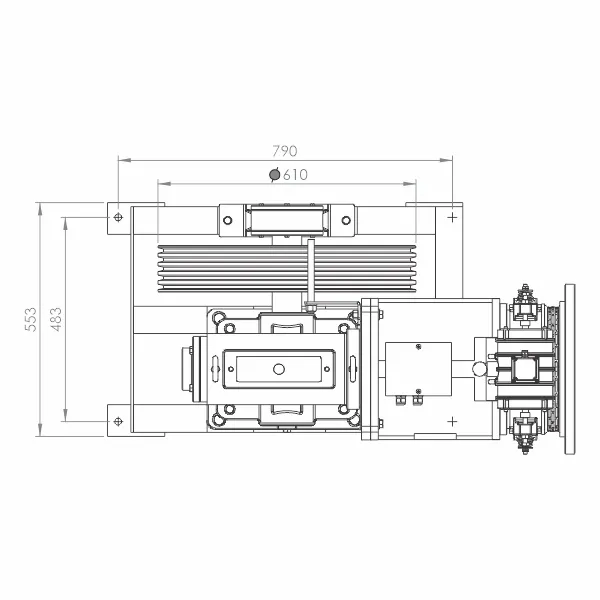

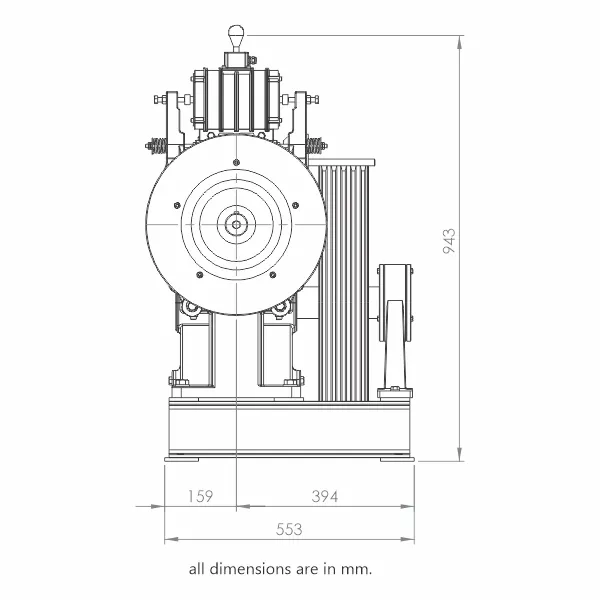

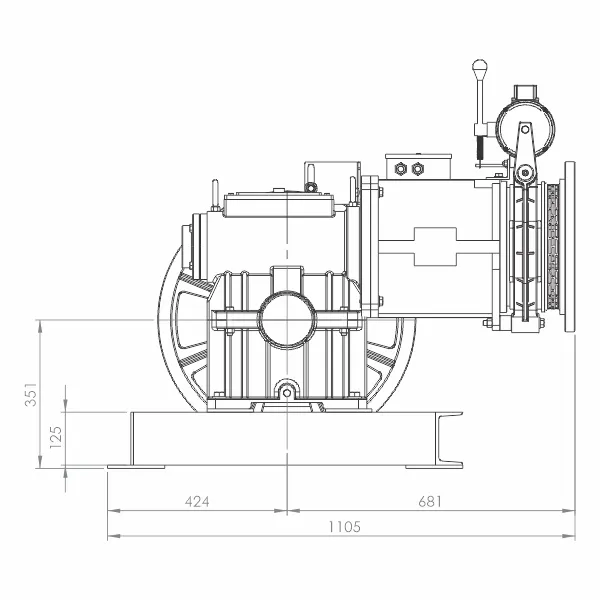

Technical Drawing
