Max Static Load6500 Kg.
Voltage400 V
Roping2/1
Brake110 V DC
Weight530 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Roping | Speed (in m/sec) | Height (m) | Sheave (mm) | Rope (mm) | No. of Grove | Power (KW) | Amp | Rating | INS Class | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VL 3700 10S | 2500 | 2/1 | 1.0 | ⩽80 | ∅320 | 8 | 11 | 16.8 | 42.5 | S5 (40%) | F Class | IP-40 |
| VL 3700 10S | 2500 | 2/1 | 1.75 | ⩽80 | ∅320 | 8 | 11 | 25.5 | 52.5 | S5 (40%) | F Class | IP-40 |

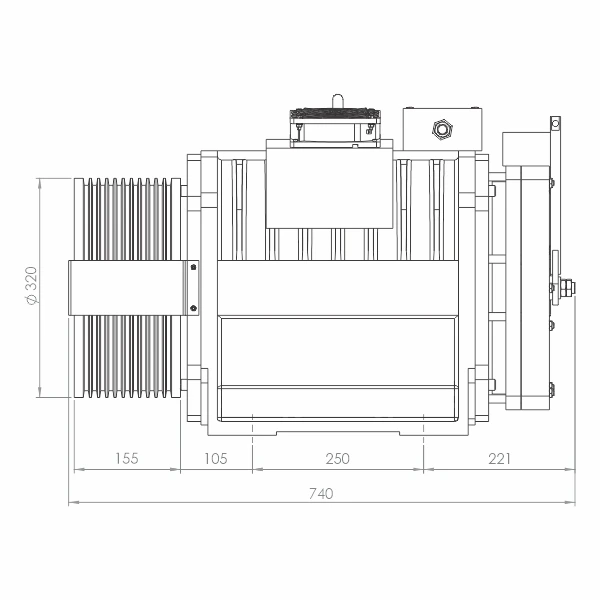

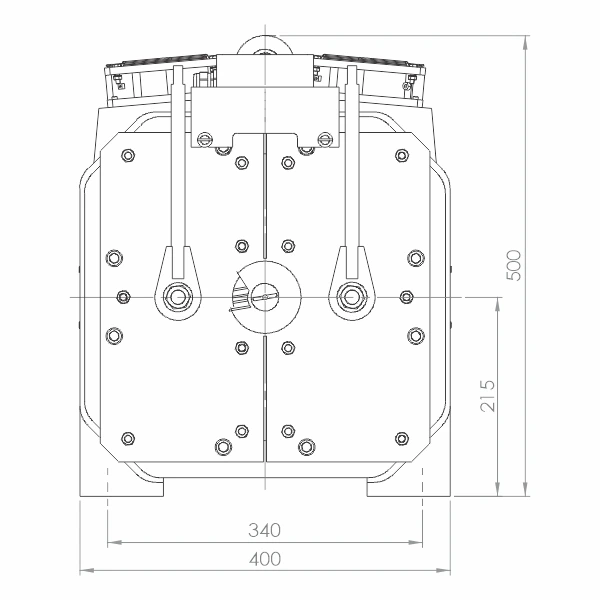

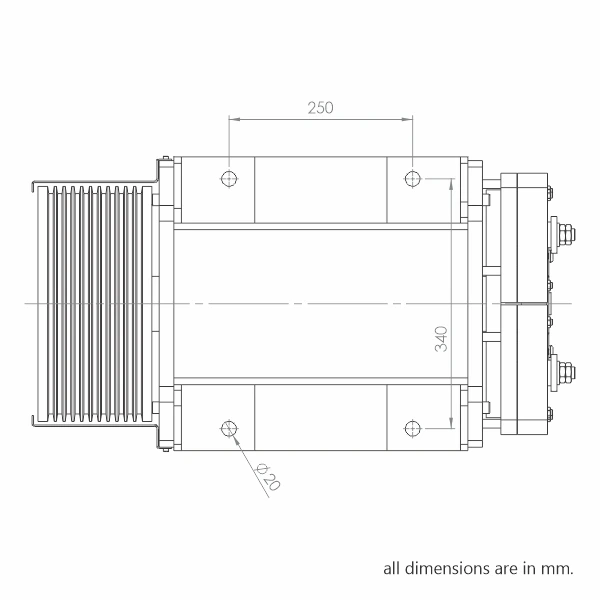

Technical Drawing
