Max Static Load3000 Kg.
Power Range (AC2)5.5 kW. 4/16 Pole 50Hz
5.5 kW. 4/16 Pole 60Hz
Brake Voltage48, 60, 110, 220 DC.
Sheave Range510, 530, 560 mm.
Oil Capacity3.5 Ltr. (Approx)
Weight280 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Travel |
|---|---|---|---|---|---|---|---|---|---|
| VI 7.5 UT SUPER AC2 | 544 | 1 | 1/40, 1/52 | 530 | 10/13 x 3/4 | 1:1 | 5.5 | 7.5 | 30 |
| VI 7.5 UT SUPER AC2 | 1050 | 0.5 | 1/40, 1/52 | 530 | 10/13 x 3/4 | 2:1 | 5.5 | 7.5 | 30 |

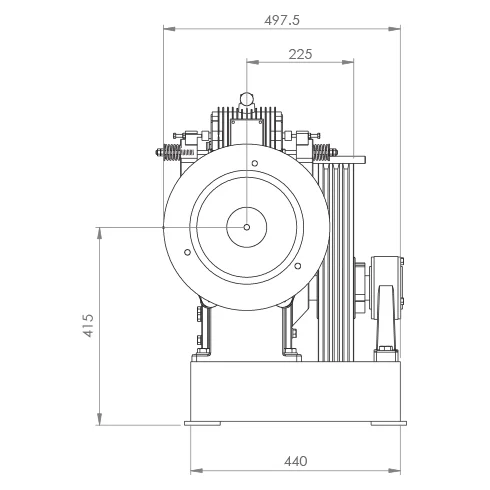

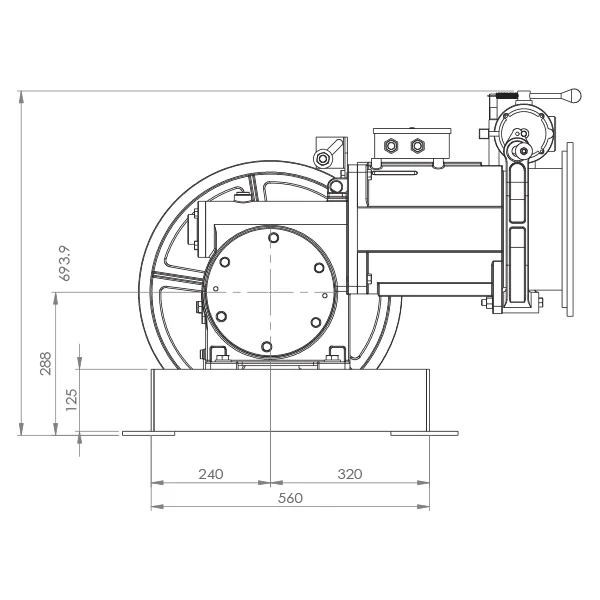

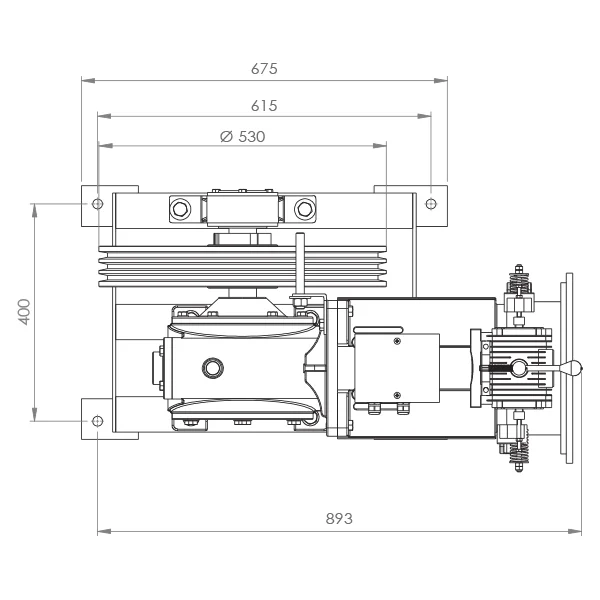

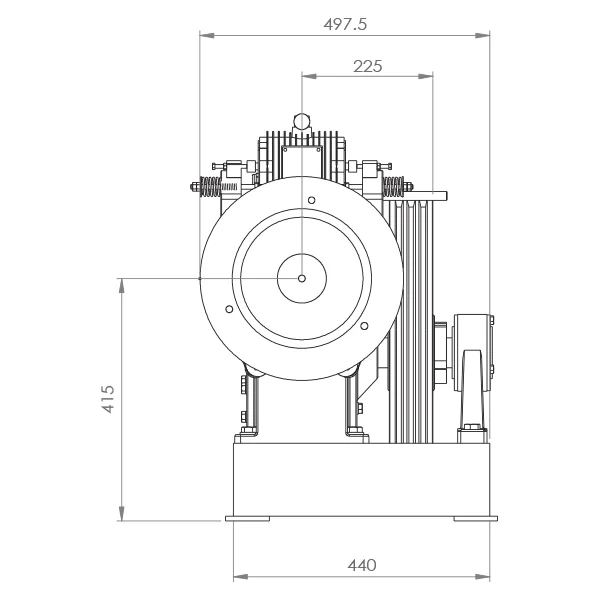

Technical Drawing
