Max Static Load5000 Kg.
Power Range9.2 / 11 kW.
Brake Voltage48, 60, 110, 220 DC.
Sheave Range530, 560, 610 mm.
Oil Capacity5 Ltr. (Approx)
Weight380 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Travel |
|---|---|---|---|---|---|---|---|---|---|
| VI 15 UT SUPER | 816 | 1.00 | 1/50 | 530 | 13 x 3/4 | 1:1 | 9.2 | 12.5 | 30 |
| VI 15 UT SUPER | 1632 | 0.65 | 1/50 | 530 | 13 x 4/5 | 2:1 | 9.2 | 12.5 | 30 |
| VI 15 UT SUPER | 1020 | 1.00 | 1/50 | 530 | 13 x 4/5 | 1:1 | 11.0 | 15 | 30 |
| VI 15 UT SUPER | 2040 | 0.65 | 1/50 | 530 | 13 x 4/5 | 2:1 | 11.0 | 15 | 30 |

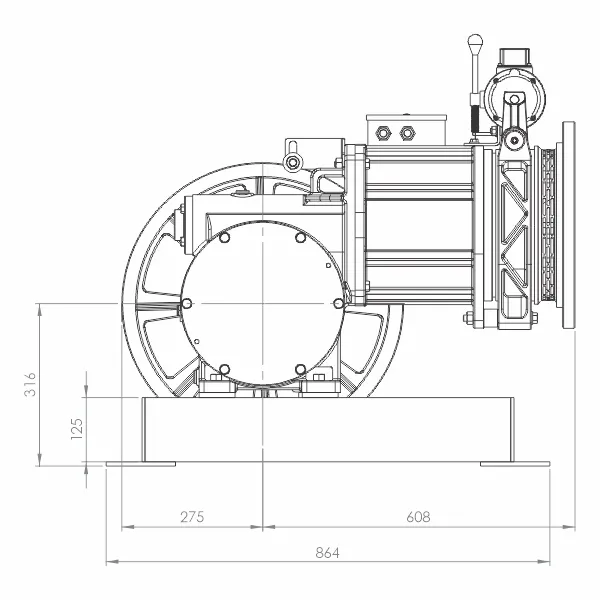

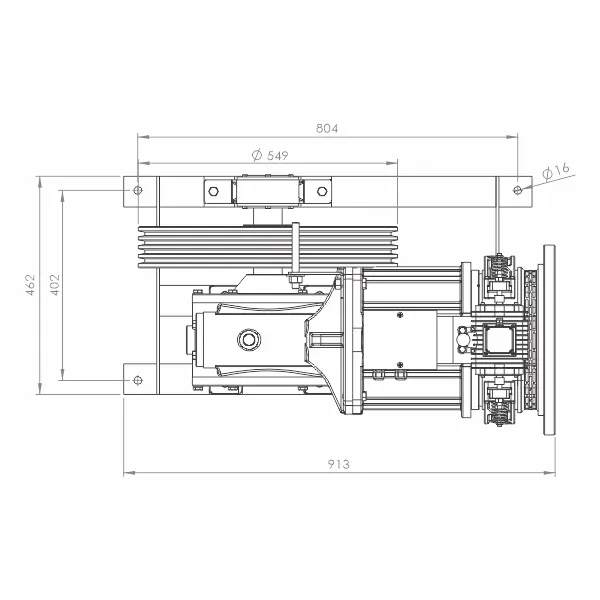

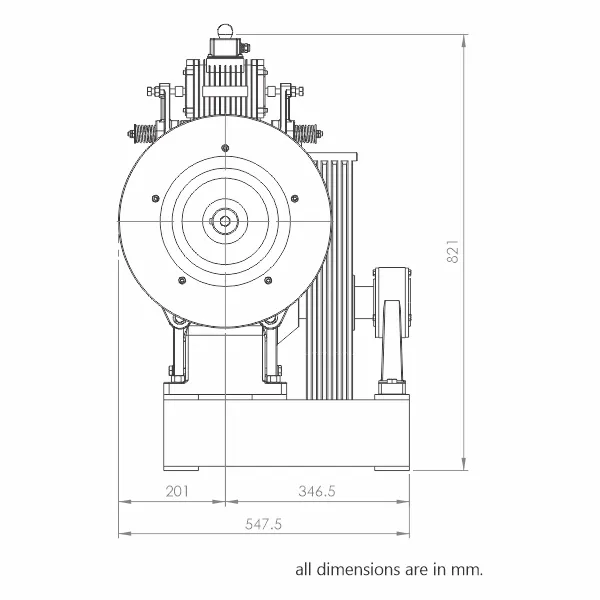

Technical Drawing
