Max Static Load8000 Kg.
Power Range18.5 kW.
Brake Voltage48, 60, 110, 220 DC.
Sheave Range610 mm.
Oil Capacity8 Ltr. (Approx)
Weight600 Kg. (Approx)
Additional Information
| Model | Load (in kg) | Speed (in m/sec) | Ratio | Sheave | Rope | Ropeing | Power (KW) | Power (HP) | Travel |
|---|---|---|---|---|---|---|---|---|---|
| VI 25 UT | 4000 | 0.5 | 1/59 | 610 | 13 x 13/6/7 | 2:1 | 18.5 | 25 | 30 |

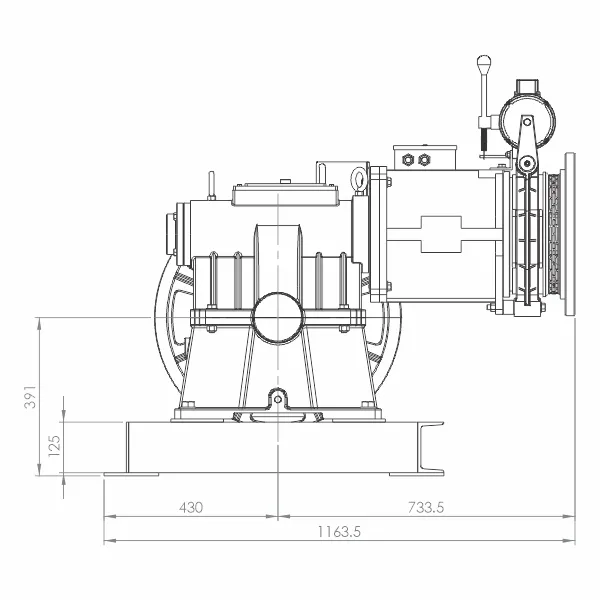

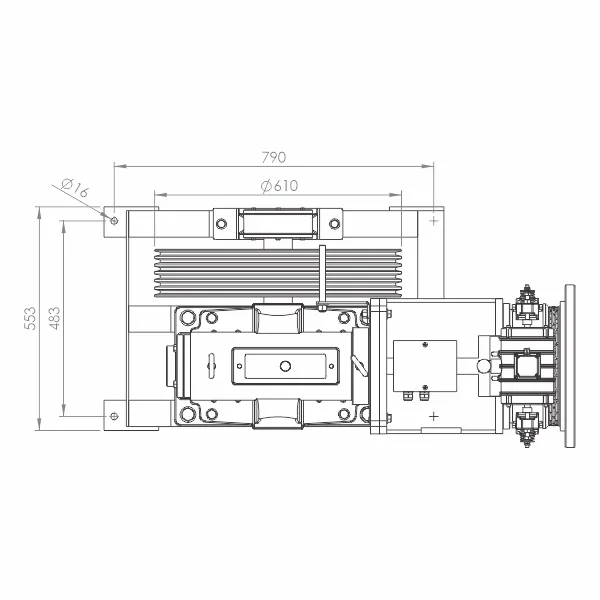

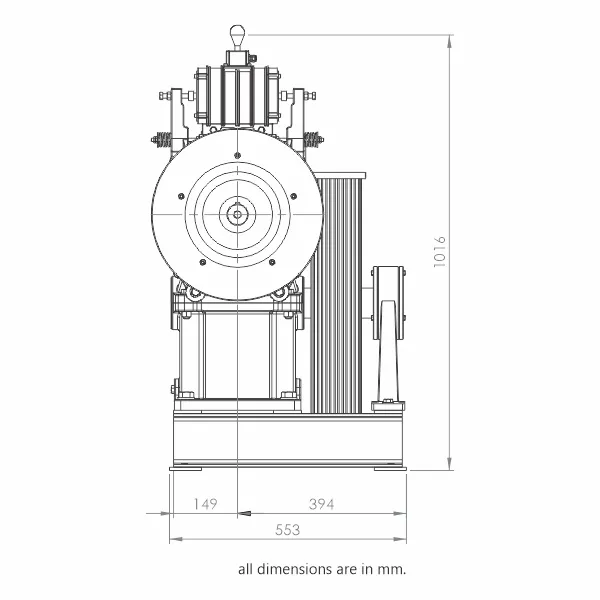

Technical Drawing
